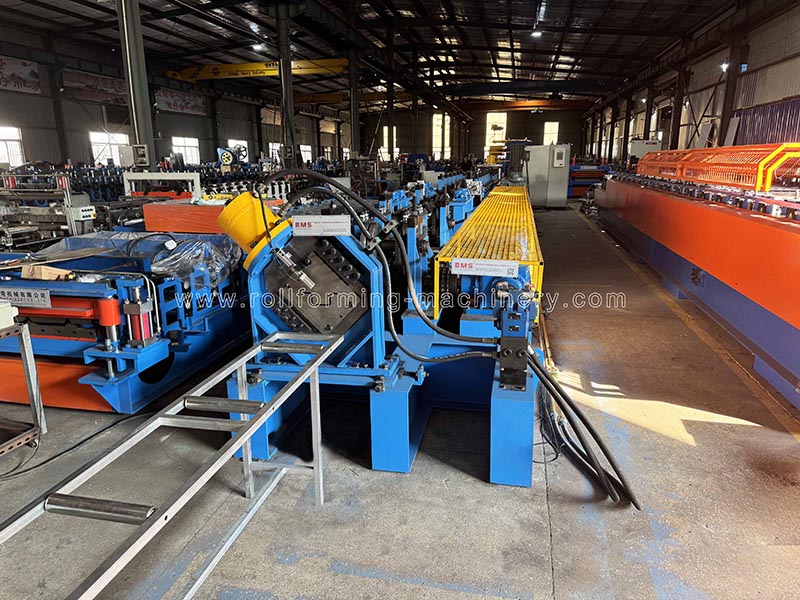

Grain Bins Stiffners Roll Forming Machine

item no.:
YX70-120
lead time:
75days
form speed:
20m/min
shipping port:
Xiamen port
payment:
TT
weight:
22 Tons

inquiry now

product details

Grain Bins Stiffners Roll Forming Machine

<img src="/js/htmledit/kindeditor/attached/20251201/20251201111124_64911.jpg" alt="Grain Bins Stiffners Roll Forming Machine " width="800" height="600" title="Grain Bins Stiffners Roll Forming Machine " align="" /> <h2> Profile </h2>  <img src="/js/htmledit/kindeditor/attached/20251201/20251201111146_18875.jpg" alt="" />       <h2> Material </h2> Effective Width: 120mm                                     Effective Width Tolerance: ±5mm   Material Thickness:4mm                                    The Length Of Tolerance:±1mm             Applicable Material:Galvanized Sheet(GI)         Inspection Thickness:4.0mm With yield strength:345Mpa  <h2> Work Flow </h2> <h3> Decoiler→Feeding  Device→leveling Device→Hydraulic Pre Cutting Device→Hydraulic Moving Punching Device→Roll Forming Mill→Hydraulic Post Cutting Device→Exit Rack </h3> <h2> <img src="/js/htmledit/kindeditor/attached/20251201/20251201111315_50899.jpg" alt="Grain Bins Stiffners Roll Forming Machine " width="800" height="600" title="Grain Bins Stiffners Roll Forming Machine " align="" /> </h2> <img src="/js/htmledit/kindeditor/attached/20251201/20251201111330_10683.jpg" alt="Grain Bins Stiffners Roll Forming Machine " width="800" height="600" title="Grain Bins Stiffners Roll Forming Machine " align="" /> <img src="/js/htmledit/kindeditor/attached/20251201/20251201111348_15745.jpg" alt="Grain Bins Stiffners Roll Forming Machine " width="800" height="600" title="Grain Bins Stiffners Roll Forming Machine " align="" />   After-Sale Service  1. The warranty is 24 months after the client receives the machine.    Within the 24 months, we will courier the replacement parts to the client free of charge 2. We offer technical support for the entire life of our machines 3. We can send our technicians to install and train the workers in the clients' factories with  extra cost <h2> Packing method  </h2> Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation. <img src="/js/htmledit/kindeditor/attached/20210319/20210319155859_90437.png" alt="Omega Roll Forming Machine" width="800" height="600" title="Omega Roll Forming Machine" align="" />

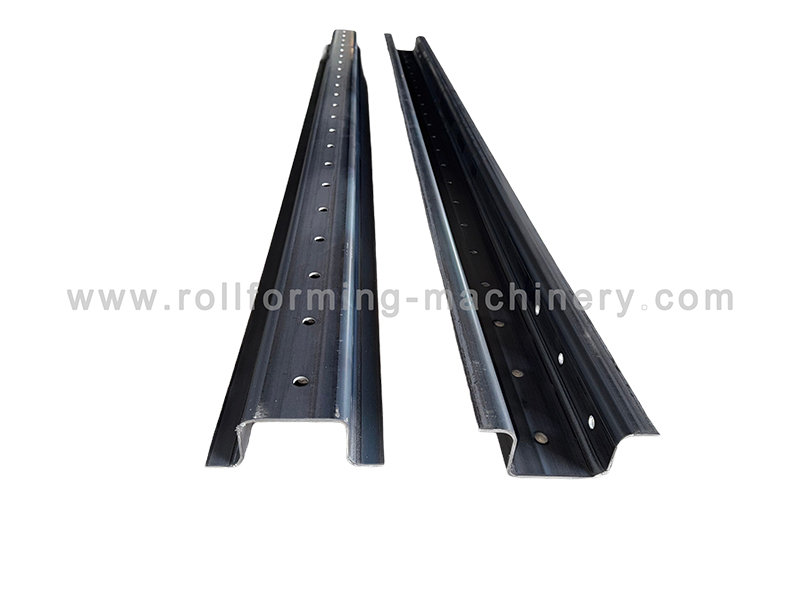

Profile

Grain Bins Stiffners Roll Forming Machine

After-Sale Service

1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost

Packing method

Main body of machine is naked and covered by plastic film (to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
