AUTO Change Size C Purlin Roll Forming Machine For Chicken Coop

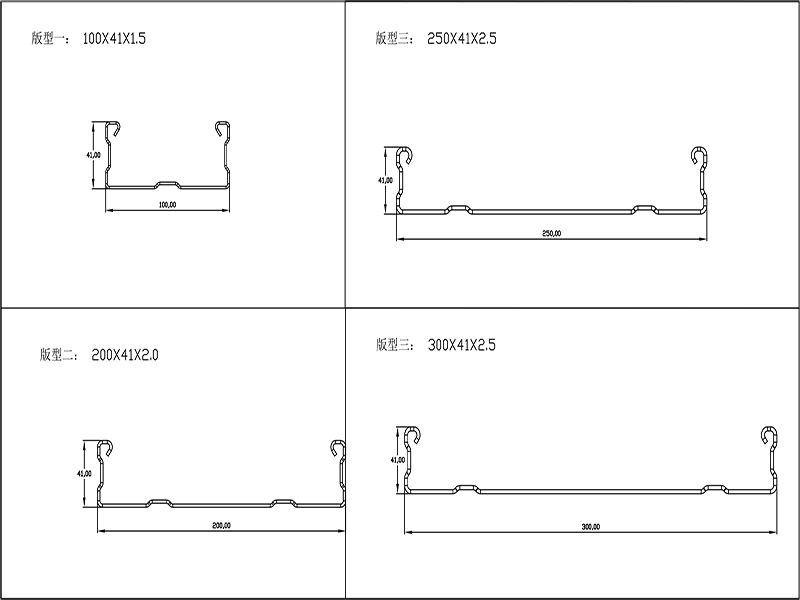

Profile
Material
Effective Width: Automatic Adjust
Effective Width Tolerance: ±0.5mm
The Length Of Tolerance: ±1mm（6M）
Inspection Thickness: 1.5-2.5mm
Material Yield Strength: 390Mpa
Work Flow
Hydraulic Decoiler With Coil Car → Feeding Device → Leveling Device → Punching Device Hydraulic Pre-cutter → Roll Forming System（Automatic Change）→ Post Cutter →Exit Rack → PLC Control System →Hydraulic station

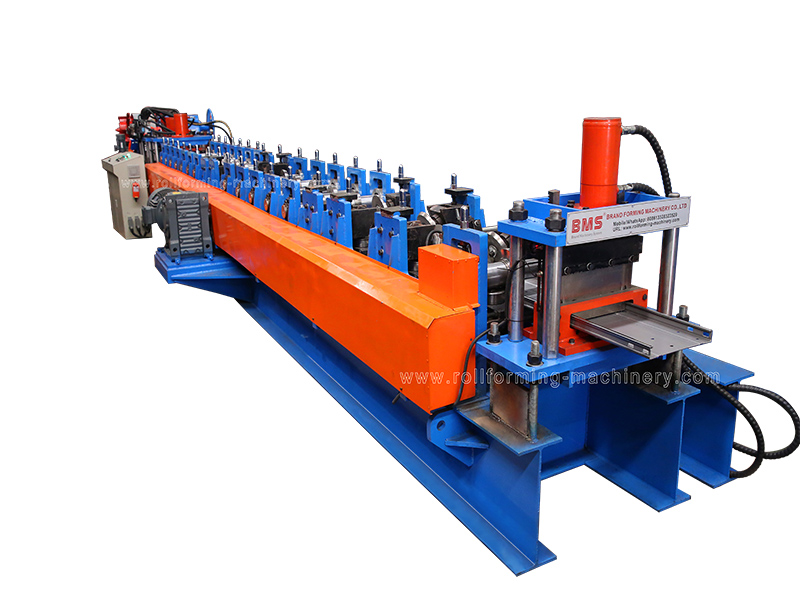

Machine Components
1) Hydraulic Decoiler With Coil Car
2) Feed Guide Device
The guiding position can be adjusted for suitable material feeding.
3) Leveling Device
4) Hydraulic Pre-cutter
Cutter structure: Flat shear (arc cutter)
Material: Cr12Mov(SKD11), heat treatment

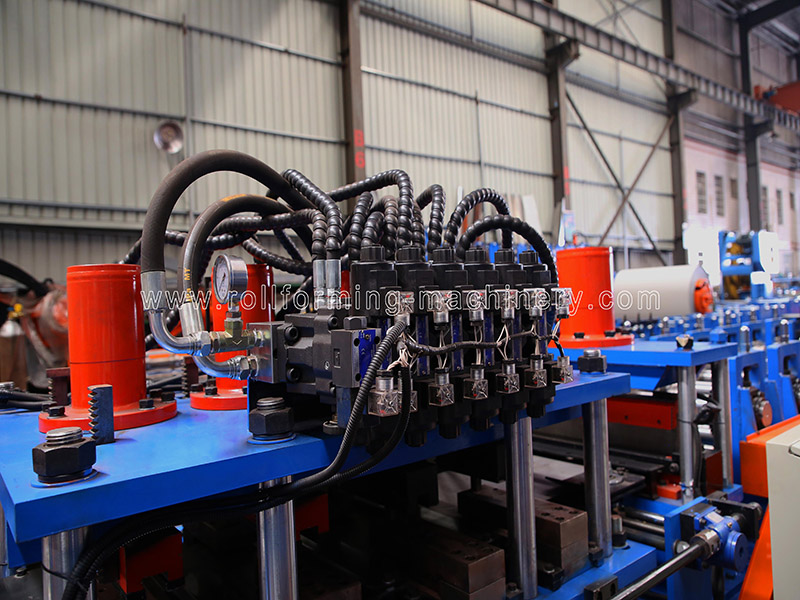

5) Punching Device
The size of Punching model: a set of double hole 14*30, a set of single hole 14*30/
a set of double hole Φ14, a set of single hole Φ14

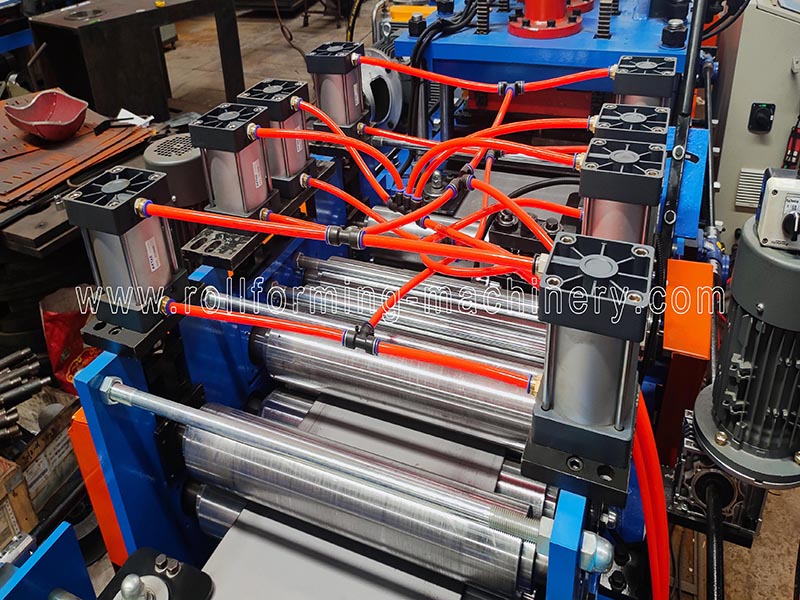

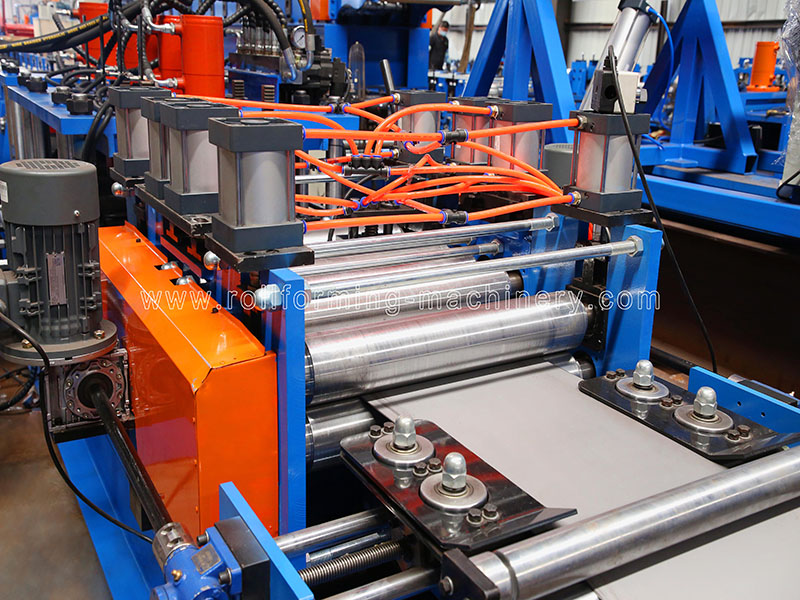

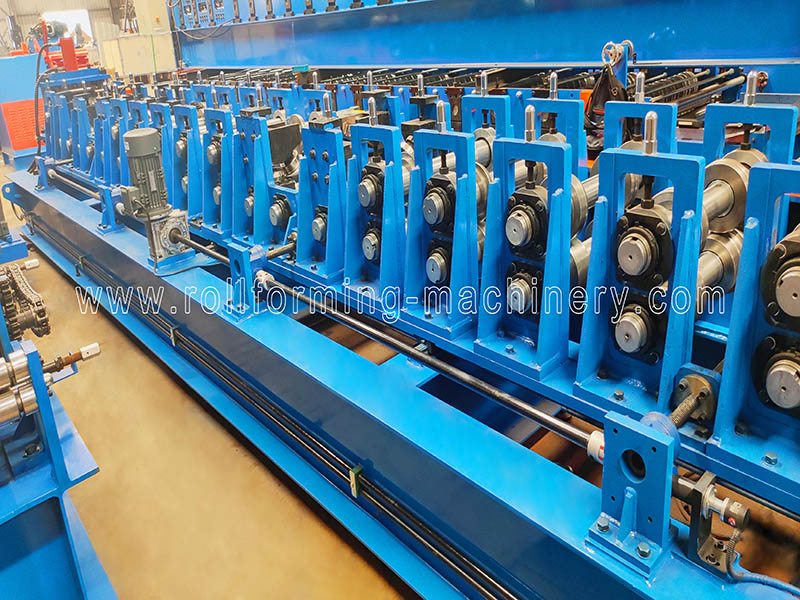

6) Roll Forming System（Automatic Change）
Body frame made from H450 type steel by welding
Rollers manufactured from Bearing steelCr12, precision machined, hard Chrome Coated;With thickness 0.5mm, surface with mirror treatment (for longer life and anti-rust);
Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating. Diameter=φ75/90mm, precision machined
Gear & chain drive about 20-step to form
Main Motor=18.5KW, Frequency speed control
Speed reducer motor: K series (Prepare by users)
Chain: ZIQIANG
All the screw bolts with grade 8.8 (cheap factories use low grade 4.8) to ensure fix the machine structure tightly and long life during the machine long time running.
Product speed: 14-18m/min (Including punching and cutting time)

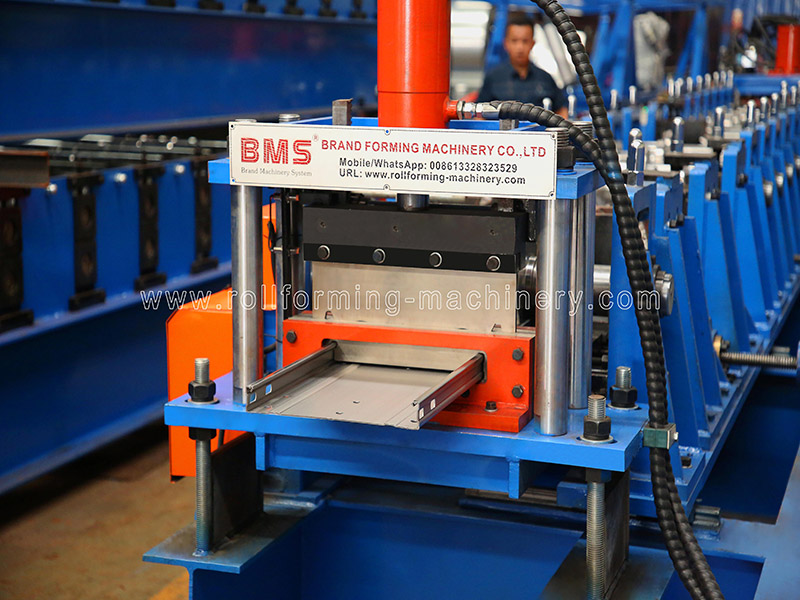

7) Post Cutter

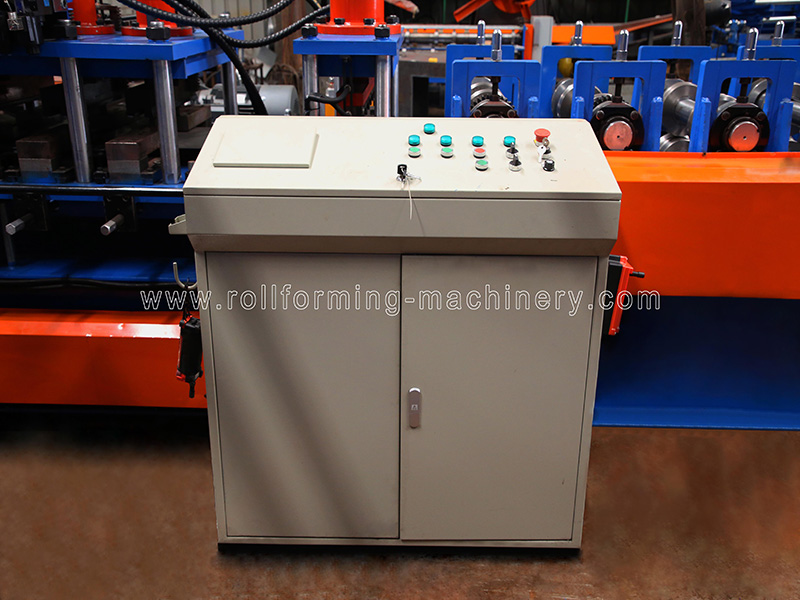

8) PLC Control System
Control the quantity and cutting length automatically.
Input the production data (production batch, pcs, length, etc.) On the touch screen ,
It can finish the production automatically.
Combined with: PLC, inverter, touch screen, encoder, etc.

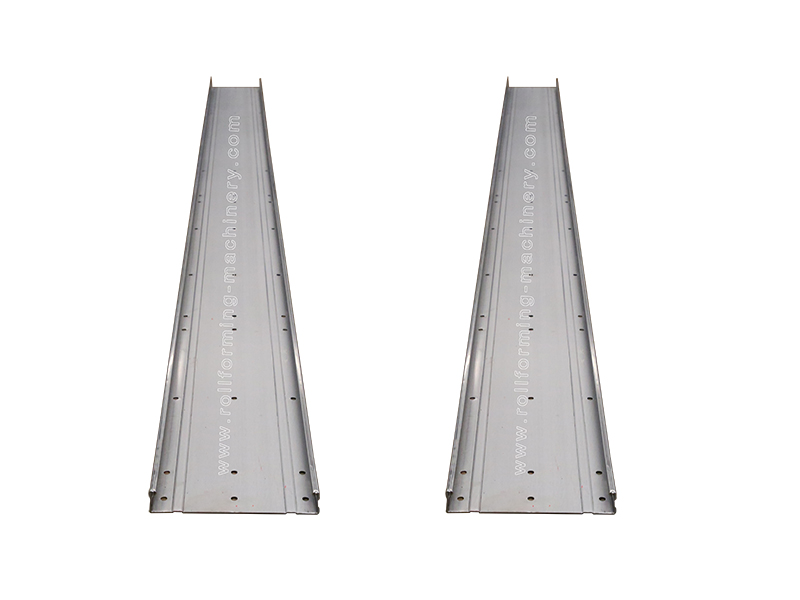

9) Product Show
After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within the 24 months, we will courier the replacement parts to the client free of charge
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with
extra cost.
Packing method
Main body of machine is naked and covered by plastic film (to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
